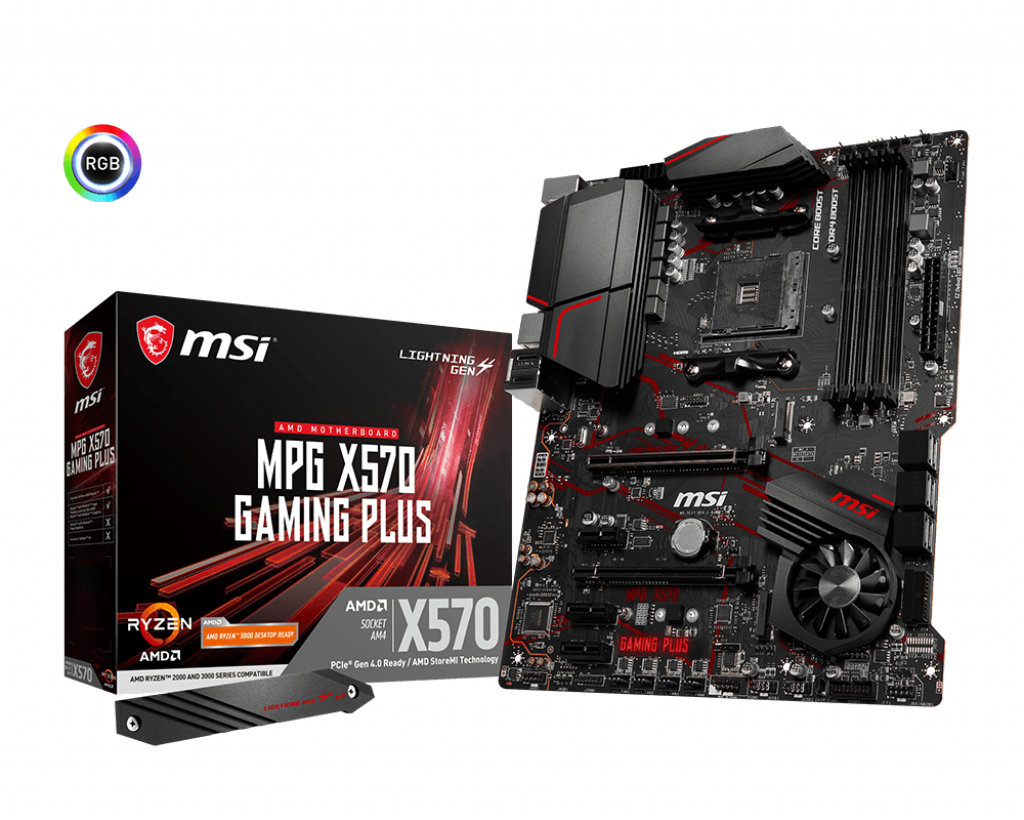

MSI MPG X570 GAMING PLUS Motherboard (AMD AM4 Socket)

Supports AMD Ryzen™ 5000 Series/ 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ 4000 G-Series / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics Desktop Processors for AM4 socket

AMD® X570 Chipset

4x DDR4 memory slots, support up to 128GB 3rd Gen AMD Ryzen™ Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400 Mhz by A-XMP OC MODE2nd Gen AMD Ryzen™ Processors, 1st and 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 Mhz by JEDEC, and 2667 /2800 / 2933 /3000 /3066 /3200 /3466 Mhz by A-XMP OC MODE

AMD® X570 Chipset4x SATA 6Gb/s ports(SATA3-SATA6)2x M.2 slots (Key M)M2_1 slot(from AMD® Processor)- Supports PCIe 4.0 x4 (3rd Gen AMD Ryzen™)- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series, Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics)- Supports 2242/ 2260/ 2280/ 22110 storage devicesM2_2 slot (from AMD® X570 Chipset)- Supports PCIe 3.0 x4 (2nd Gen AMD Ryzen™/ Ryzen™ 4000 G-Series,Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics) and SATA 6Gb/s supports 2242/ 2260/ 2280 storage devicesASMedia ASM10612x SATA 6Gb/s ports (SATA1, SATA2)

1x 24-pin ATX main power connector1x 8-pin ATX 12V power connector1x 4-pin ATX 12V power connector6x SATA 6Gb/s connectors2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)1x 4-pin CPU fan connector1x 4-pin water-pump connector4x 4-pin system fan connectors1x Front panel audio connector2x System panel connectors1x TPM module connector1x Serial port connector1x Clear CMOS jumper1x Chassis Intrusion connector2x 4-pin RGB LED connectors2x 3-pin RAINBOW LED connectors4x EZ Debug LEDs
