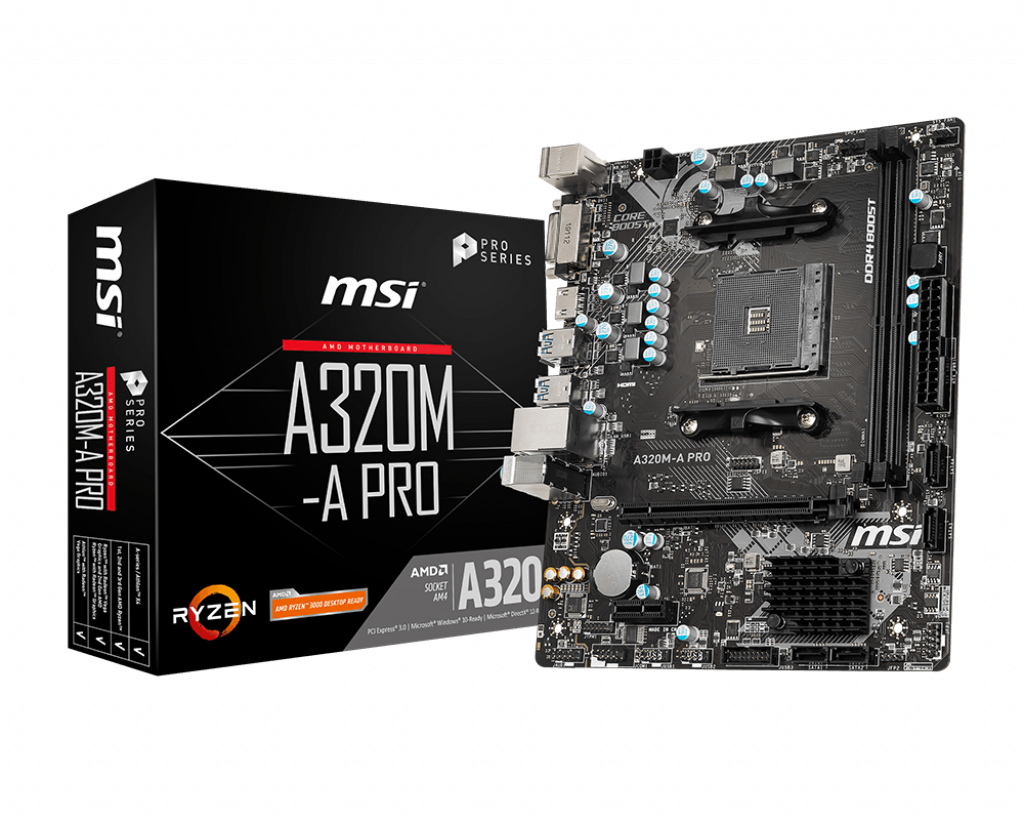

MSI A320M-A PRO Motherboard (AMD AM4 Socket)

Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

AMD® 320 Chipset

2 x DDR4 memory slots, support up to 64GB *ComboPI 1.0.0.3-based and above BIOS are required.1Support 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHzDual channel memory architectureSupports non-ECC UDIMM memorySupports ECC UDIMM memory (non-ECC mode)

1 x PCIe 3.0 x16 slotSupports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processorssSupports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processorsSupports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors1 x PCIe 2.0 x1 slots

1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,21 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1,2Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics ProcessorsMaximum shared memory of 2048 MB

AMD® A320 Chipset4 x SATA 6Gb/s portsSupports RAID 0, RAID 1 and RAID 10

AMD® A320 Chipset6 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal connectors)6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal connectors)

Realtek® ALC892/ALC897 Codec 7.1-Channel High Definition Audio

1 x Realtek® 8111H Gigabit LAN controller

1 x 24-pin ATX main power connector1 x 4-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)1 x 4-pin CPU fan connector1 x 4-pin system fan connector1 x Front panel audio connector1 x Serial port connector2 x Front panel connectors1 x TPM module connector1 x Chassis Intrusion connector1 x Clear CMOS jumper
